Bending Sections

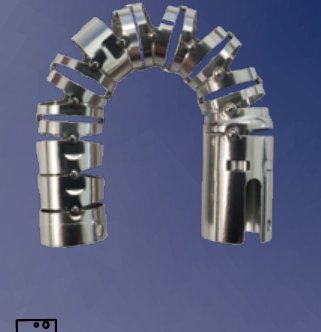

Stainless bending section (vertebrae) frames. Special sizes available on request.
135 part numbers · Price on request
135 of 135 part numbers
| Fits models | Qty | ||||||
|---|---|---|---|---|---|---|---|
| BS-01 | For Olympus | 8.5 | 0.3 | 4.9 | 68 | GIF-XQ240 | |
| BS-02 | For Olympus | 8.5 | 0.3 | 4.8 | 68 | GIF-Q150, GIF-Q180, GIF-160 | |
| BS-03 | For Olympus | 8.5 | 0.3 | 4.8 | 73 | GIF-V70 | |
| BS-04 | For Olympus | 8.7 | 0.25 | 5.3 | 68 | GIF-Q260 | |
| BS-05 | For Olympus | 8.8 | 0.25 | 5.1 | 72 | GIF-H260 | |
| BS-06 | For Olympus | — | — | — | — | GIF-Q260J | |
| BS-07 | For Olympus | 8.8 | 0.3 | 5 | 73 | GIF-Q160 | |
| BS-08 | For Olympus | 8.8 | 0.3 | 5 | 72 | GIF-140 | |
| BS-09 | For Olympus | 9 | 0.3 | 5.1 | 72 | GIF-Q145 | |
| BS-10 | For Olympus | 9.1 | 0.3 | 5.1 | 75 | GIF-H180 | |
| BS-11 | For Olympus | 8.9 | 0.25 | 5.1 | 65.6 | GIF-H190 | |
| BS-12 | For Olympus | 9.5 | 0.3 | 5.5 | 74.5 | GIF-HQ190 | |
| BS-13 | For Olympus | 9.5 | 0.3 | 5.5 | 75 | GIF-Q140 | |
| BS-14 | For Olympus | 9.7 | 0.3 | 5.7 | 99 | PCF-160AL, PCF-Q180AL, PCF-240L | |
| BS-15 | For Olympus | 9.7 | 0.3 | 5.7 | 98 | PCF-Q260AL | |
| BS-16 | For Olympus | 10.2 | 0.3 | 6 | 99 | PCF-H180AL | |
| BS-17 | For Olympus | 10.4 | 0.3 | 6.2 | 96 | PCF-H190L | |
| BS-18 | For Olympus | 10.85 | 0.3 | 6.6 | 98 | PCF-H190DL | |
| BS-19 | For Olympus | 10.9 | 0.3 | 6.7 | 111 | CF-Q260DL | |
| BS-20 | For Olympus | 10.9 | 0.4 | 6.5 | 111 | CF-240L | |
| BS-21 | For Olympus | 11 | 0.3 | 6.4 | 54 | TJF-260, TJF-240, TJF-160 | |
| BS-22 | For Olympus | 11.7 | 0.4 | 7.3 | 113 | CF-Q160AL, CF-Q180AL, CF-Q160I | |
| BS-23 | For Olympus | 11.7 | 0.4 | 7.3 | 112 | CF-H180AL, CF-H260AL | |
| BS-24 | For Olympus | — | — | — | — | CF-Q260AI | |
| BS-25 | For Olympus | 11.7 | 0.4 | 7.3 | 109 | CF-HQ190 | |
| BS-26 | For Karl Storz | 4.65 | 0.15 | 3.2 | 49.5 | 11272CU1 | |
| BS-27 | For Olympus | 3.7 | 0.15 | 3.4 | 35 | LF-GP | |
| BS-28 | For Karl Storz | 3.2 | 0.12 | 2 | 32.5 | 11292BD1 | |
| BS-29 | For Pentax | 9.1 | 0.25 | 5.8 | 72 | EG-2990i | |
| BS-30 | For Pentax | 9.1 | 0.25 | 5.8 | 66 | EG-2990K | |
| BS-31 | For Pentax | 9.1 | 0.25 | 5.8 | 70 | EG-29i10 | |
| BS-32 | For Pentax | 9.1 | 0.25 | 5.8 | 70 | EG-290KP | |
| BS-33 | For Pentax | 9.1 | 0.25 | 5.8 | 68.6 | EG-290V | |
| BS-34 | For Pentax | 8.3 | 0.25 | 4.8 | 64 | EG-2770K | |
| BS-35 | For Pentax | 8.3 | 0.25 | 4.8 | 63 | EG-27i10 | |
| BS-36 | For Pentax | 11.6 | 0.3 | 7.1 | 102 | EC-3890FK, EC-3890FKP, EC-3890FKZP | |
| BS-37 | For Pentax | 11.6 | 0.3 | 7.1 | 102 | EC-380LKP | |
| BS-38 | For Pentax | 11.6 | 0.3 | 7.1 | 101 | EC-3890Si | |
| BS-39 | For Fujifilm | 7.6 | 0.15 | 4 | 70.7 | EG-530FP | |
| BS-40 | For Fujifilm | 8.3 | 0.25 | 4.7 | 70.7 | EG-530WR, EG-250WR5 | |
| BS-41 | For Fujifilm | 9.6 | 0.2 | 5.8 | 72.5 | EG-590WR | |
| BS-42 | For Fujifilm | 11.9 | 0.25 | 9.7 | 97.8 | EC-530WI, EC-530WM, EC-530WL | |
| BS-43 | For Fujifilm | 11.9 | 0.25 | 9.7 | 97.8 | EC-250WL5 | |
| BS-44 | For Fujifilm | 11.9 | 0.25 | 9.7 | 102.8 | EC-590WI4, EC-590WM4, EC-590WL4 | |
| DL-BS-BF-P30 | For Olympus | — | — | — | — | BF-P30 | |
| DL-BS-BF-T30 | For Olympus | — | — | — | — | BF-T30 | |
| DL-BS-CF-140I | For Olympus | 11.6 | — | — | 108 | CF-140I | |
| DL-BS-CF-240DL | For Olympus | 10.9 | — | — | 111 | CF-240DL | |
| DL-BS-CF-240L | For Olympus | 10.9 | — | — | 111 | CF-240L | |
| DL-BS-CF-H170 | For Olympus | — | — | — | — | CF-H170 | |
| DL-BS-CF-H180AL | For Olympus | 11.6 | — | — | 112 | CF-H180AL | |
| DL-BS-CF-H180DL-I | For Olympus | 12 | — | — | 112 | CF-H180DL, CF-H180DI | |
| DL-BS-CF-H190L-I | For Olympus | 11.6 | — | — | 109 | CF-H190L, CF-H190I | |
| DL-BS-CF-H260AL-AI | For Olympus | — | — | — | — | CF-H260AL, CF-H260AI | |
| DL-BS-CF-H260DL | For Olympus | 12.1 | — | — | 112 | CF-H260DL | |
| DL-BS-CF-H290I | For Olympus | — | — | — | — | CF-H290I | |
| DL-BS-CF-HQ190 | For Olympus | 11.6 | — | — | 109 | CF-HQ190 | |
| DL-BS-CF-HQ190L-I | For Olympus | 11.8 | — | — | 46.5 | CF-HQ190L, CF-HQ190I | |
| DL-BS-CF-HQ290 | For Olympus | — | — | — | — | CF-HQ290 | |
| DL-BS-CF-Q160AL | For Olympus | 11.6 | — | — | 113 | CF-Q160AL | |
| DL-BS-CF-Q160L-I | For Olympus | 11.6 | — | — | 113 | CF-Q160L, CF-Q160I | |
| DL-BS-CF-Q180AL | For Olympus | 11.6 | — | — | 113 | CF-Q180AL | |
| DL-BS-CF-Q260AL-AI | For Olympus | 10.9 | — | — | 111 | CF-Q260AL, CF-Q260AI | |
| DL-BS-CF-Q260DL | For Olympus | 10.9 | — | — | 112 | CF-Q260DL | |
| DL-BS-CF-V70I | For Olympus | 11.6 | — | — | 109 | CF-V70I | |
| DL-BS-CHF-P60 | For Olympus | 4.6 | — | — | 43 | CHF-P60 | |
| DL-BS-CHF-T20 | For Olympus | 5.5 | — | — | 38 | CHF-T20 | |
| DL-BS-EC250WL5 | For Fujifilm | — | — | — | — | EC-250WL5 | |
| DL-BS-EC34I10 | For Pentax | — | — | — | — | EC34-i10 | |
| DL-BS-EC380LKP | For Pentax | — | — | — | — | EC-380LKP | |
| DL-BS-EC3890FK-FKP-FKZP | For Pentax | — | — | — | — | EC-3890FK, EC-3890FKP, EC-3890FKZP | |
| DL-BS-EC3890LI | For Pentax | — | — | — | — | EC-3890Li | |
| DL-BS-EC3890SI | For Pentax | — | — | — | — | EC-3890Si | |
| DL-BS-EC3890ZI | For Pentax | — | — | — | — | EC-3890Zi | |
| DL-BS-EC38I10 | For Pentax | — | — | — | — | EC38-i10 | |
| DL-BS-EC530WI-WM-WL | For Fujifilm | — | — | — | — | EC-530WI, EC-530WM, EC-530WL | |
| DL-BS-EC590WI4-WM4-WL4 | For Fujifilm | — | — | — | — | EC-590WI4, EC-590WM4, EC-590WL4 | |
| DL-BS-EC600WM | For Fujifilm | — | — | — | — | EC-600WM | |
| DL-BS-EG250WR5 | For Fujifilm | — | — | — | — | EG-250WR5 | |
| DL-BS-EG2770K | For Pentax | — | — | — | — | EG-2770K | |
| DL-BS-EG27I10 | For Pentax | — | — | — | — | EG27-i10 | |
| DL-BS-EG290KP | For Pentax | — | — | — | — | EG-290KP | |
| DL-BS-EG290V | For Pentax | — | — | — | — | EG-290V | |
| DL-BS-EG2970K | For Pentax | — | — | — | — | EG-2970K | |
| DL-BS-EG2990I | For Pentax | — | — | — | — | EG-2990i | |
| DL-BS-EG2990K | For Pentax | — | — | — | — | EG-2990K | |
| DL-BS-EG29I10 | For Pentax | — | — | — | — | EG29-i10 | |
| DL-BS-EG530FP | For Fujifilm | — | — | — | — | EG-530FP | |
| DL-BS-EG530WR | For Fujifilm | — | — | — | — | EG-530WR | |
| DL-BS-EG590WR | For Fujifilm | — | — | — | — | EG-590WR | |
| DL-BS-EG600WR | For Fujifilm | — | — | — | — | EG-600WR | |
| DL-BS-GIF-140 | For Olympus | 8.8 | — | — | 72 | GIF-140 | |
| DL-BS-GIF-160 | For Olympus | 8.5 | — | — | 68 | GIF-160 | |
| DL-BS-GIF-1T240 | For Olympus | 10.1 | — | — | 84 | GIF-1T240 | |
| DL-BS-GIF-2T160 | For Olympus | 11.6 | — | — | 89 | GIF-2T160 | |
| DL-BS-GIF-H170 | For Olympus | — | — | — | — | GIF-H170 | |
| DL-BS-GIF-H180 | For Olympus | 9.1 | — | — | 75 | GIF-H180 | |
| DL-BS-GIF-H180J | For Olympus | 9.5 | — | — | 77 | GIF-H180J | |
| DL-BS-GIF-H185 | For Olympus | 8.9 | — | — | 66.2 | GIF-H185 | |
| DL-BS-GIF-H290 | For Olympus | — | — | — | — | GIF-H290 | |
| DL-BS-GIF-HQ190 | For Olympus | 9.5 | — | — | 74.5 | GIF-HQ190 | |
| DL-BS-GIF-HQ290 | For Olympus | — | — | — | — | GIF-HQ290 | |
| DL-BS-GIF-N180 | For Olympus | — | — | — | — | GIF-N180 | |
| DL-BS-GIF-P150 | For Olympus | — | — | — | — | GIF-P150 | |
| DL-BS-GIF-Q140 | For Olympus | 9.3 | — | — | 75 | GIF-Q140 | |
| DL-BS-GIF-Q145 | For Olympus | 9 | — | — | 72 | GIF-Q145 | |
| DL-BS-GIF-Q150 | For Olympus | 8.5 | — | — | 68 | GIF-Q150 | |
| DL-BS-GIF-Q160 | For Olympus | 8.8 | — | — | 73 | GIF-Q160 | |
| DL-BS-GIF-Q180 | For Olympus | 8.5 | — | — | 68 | GIF-Q180 | |
| DL-BS-GIF-Q240 | For Olympus | 8.8 | — | — | 74 | GIF-Q240 | |
| DL-BS-GIF-Q240-L72 | For Olympus | 8.8 | — | — | 72 | GIF-Q240 | |
| DL-BS-GIF-Q260 | For Olympus | 8.7 | — | — | 68 | GIF-Q260 | |
| DL-BS-GIF-Q260J | For Olympus | 9.5 | — | — | 71 | GIF-Q260J | |
| DL-BS-GIF-V70 | For Olympus | 8.5 | — | — | 73 | GIF-V70 | |
| DL-BS-GIF-XQ240 | For Olympus | 8.5 | — | — | 68 | GIF-XQ240 | |
| DL-BS-GIF-XTQ160 | For Olympus | 11.8 | — | — | 89 | GIF-XTQ160 | |
| DL-BS-LF-GP | For Olympus | 3.7 | — | — | 33 | LF-GP | |
| DL-BS-PCF-140L | For Olympus | 9.7 | — | — | 98 | PCF-140L | |
| DL-BS-PCF-160AL | For Olympus | 9.7 | — | — | 99 | PCF-160AL | |
| DL-BS-PCF-240L | For Olympus | 9.7 | — | — | 99 | PCF-240L | |
| DL-BS-PCF-H180AL | For Olympus | 10.2 | — | — | 99 | PCF-H180AL | |
| DL-BS-PCF-H190L | For Olympus | 10.25 | — | — | 98 | PCF-H190L | |
| DL-BS-PCF-P240AL | For Olympus | 9.3 | — | — | 99 | PCF-P240AL | |
| DL-BS-PCF-PH190I | For Olympus | 9.5 | — | — | 58.2 | PCF-PH190I | |
| DL-BS-PCF-PH190L | For Olympus | 9.1 | — | — | 96.7 | PCF-PH190L | |
| DL-BS-PCF-Q180AL | For Olympus | 9.7 | — | — | 99 | PCF-Q180AL | |
| DL-BS-PCF-Q260AL | For Olympus | 9.7 | — | — | 99 | PCF-Q260AL | |
| DL-BS-PCF-Q260JI | For Olympus | 9.7 | — | — | 92 | PCF-Q260JI | |
| DL-BS-TJF-140F | For Olympus | 11 | — | — | 55.1 | TJF-140F | |
| DL-BS-TJF-160 | For Olympus | 11 | — | — | 54 | TJF-160 | |
| DL-BS-TJF-240 | For Olympus | 11 | — | — | 54 | TJF-240 | |
| DL-BS-TJF-260 | For Olympus | 11 | — | — | 54 | TJF-260 | |
| DL-BS-TJF-Q180V | For Olympus | 11 | — | — | 54 | TJF-Q180V | |
| DL-BS-URF-P5 | For Olympus | — | — | — | — | URF-P5 | |
| DL-BS-URF-V | For Olympus | 3.15 | — | — | 65 | URF-V |
